Solmax · GSE

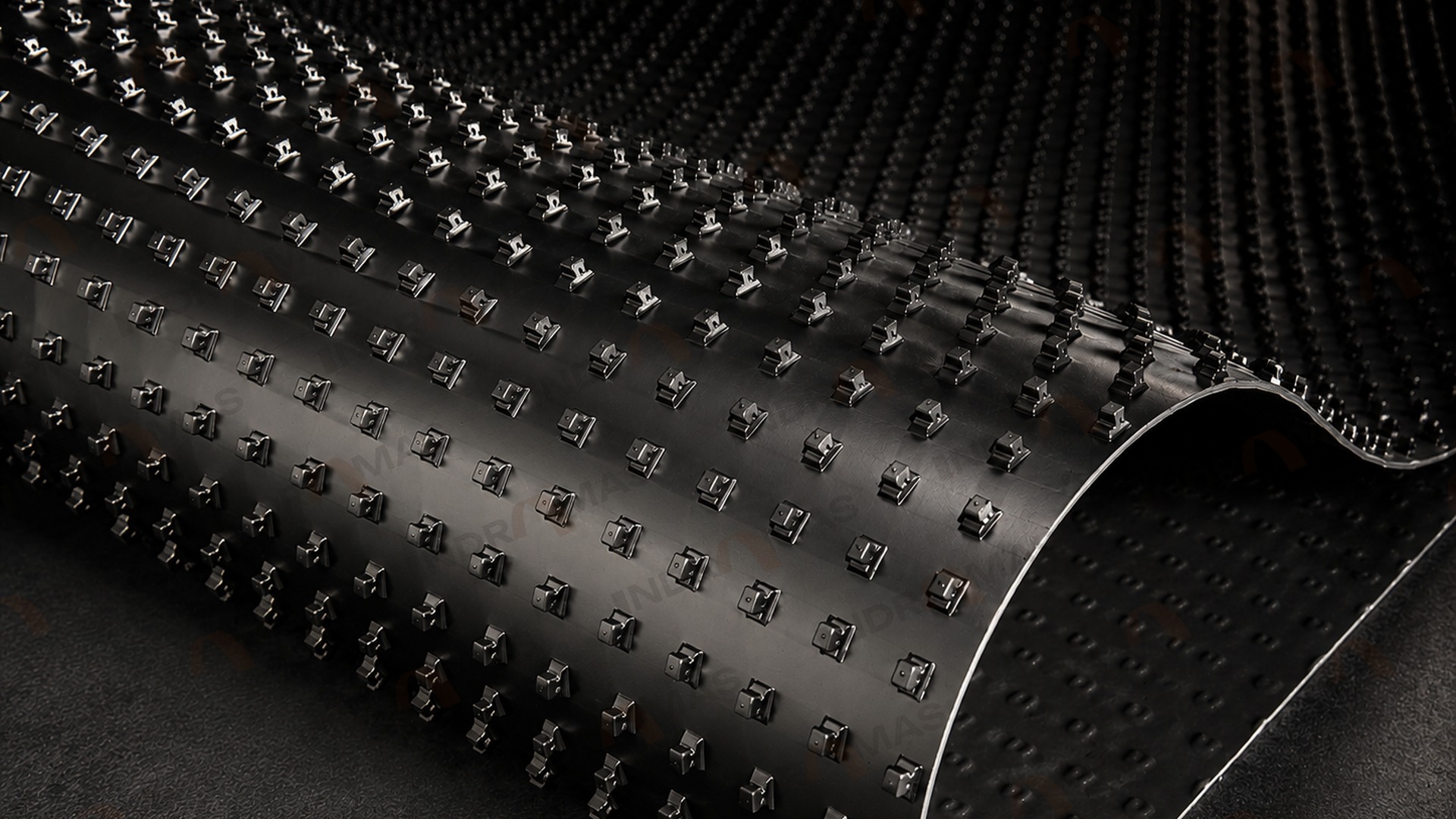

GSE Studliner
Cast in. Never peels off.
Studded HDPE liner for concrete protection
Geomembrane
GSE Studliner
HDPE sheet with studs embedded during casting, protecting concrete surfaces from chemical corrosion.
- Material
- HDPE with integral studs
- Anchorage
- Studs cast into concrete
- Function
- Corrosion protection
- Brand
- Solmax
Stop sewer gas eating the structure.
Hydrogen sulphide in sewers oxidises to sulphuric acid, dissolving the concrete crown from above the waterline. Studliner casts an HDPE face directly into the concrete — the studs prevent delamination under any chemistry, so the structure is protected for its whole design life.
Indramas supplies Studliner and details the terminations for new pours and rehabilitation projects.
Key features
- Cast-in anchorageStuds lock permanently into concrete.
- Corrosion barrierHDPE face resists H₂S acid attack.
- New-build or rehabCast into fresh pours or fixed in repairs.
- Weldable jointsContinuous, testable HDPE seams.
Specifications
| PROPERTY | VALUE |
|---|---|
| Type | Studded geomembrane |
| Material | HDPE |
| Stud height | 8 – 20 mm |
| Base thickness | 1.0 – 2.5 mm |
| Function | Drainage + protection |
Applications
Crown protection against septic gas corrosion.
Lining corrosive wastewater structures.
Chemical-resistant lining for concrete tanks.
Channels and basins exposed to aggressive gas.
